無塵自動循環回收噴砂機系列

◆物料優點和缺點 Product features（請(qing)接(jie)下去閱讀有大量量案例庫(ku)照(zhao)片頭像供(gong)分類(lei)）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”車間空氣的煙塵衛生學標準的。砂料、煙塵電腦自動利用、隔離、嵌套循環適用，業務施工現場徹底無煙塵污染源。機器設備環保型結構設計，極大調節了工人們的勞動者力度和課外作業學習環境可配噴吹閥提升裝置，可自行清理油濾灰層。內嵌分水脫水器。可對解壓縮自然空氣開始兩次油水分離出來分離出來。自行放料，將吸砂頭放砂料中，發動負壓泵平臺將自行放料。PLC可程序設計管控（加裝），料位警告功能模塊(配選)。還擁有調壓旋扭、反吹風按鍵。不穩的氣控安全裝置與耐磨材料閥。事業表面積20-70米，表面層整理平衡等級達Sa2.5-3級。設置的安全地面防水交流電插板充電插孔，簡單更便利安全進行運營。設置把控交流電國際航空插板充電插孔簡單更便利安全進行運營。顯著整潔的防污把控后蓋板與電氣控制系統箱。維保與維檢越來越簡單更便利安全。車式殼體型式，防雨布防污，移動簡單更便利安全。殼體門邊框用到安全門瑣連接方式，拆換簡單更便利安全。車把按鈕開關把控（電氣控制系統DC24V）。一機三用，具備著開發式、化工業吸砂器、低能耗型三種方法設施的特點。噴砂機箱所采用特別調節電路，操作負擔在0.2Kpa-0.8Kpa區間內同一設定，可提供其他鏜孔的噴砂工藝設備讓。用到區間：除銹處理、除車漆、焊道處   理（包含304裝飾管焊口以至于周邊產品的去黑、去焊渣整理）去振紋、飛邊、硫化皮、304裝飾管，鋁門窗面的幽雅型亞光整理（耐污性好點、可遮擋住刮痕）、去水泥混凝土的土、石雕面污圬等整理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆其主要方法基本參數 Main technical parameters

廣州POS機型號 Model	STR-B型無塵自動循環回收式噴砂機
辦(ban)公24v電源 Work power	380V 50HZ
熱空氣壓差 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
變頻電(dian)動機工作效率 Motor power	4kw
工作上學習效率 Work efficiency	6-10m2
任(ren)務圓的半徑 Work radius	10m 可(ke)(ke)可(ke)(ke)根(gen)據供需加長型，實際上資訊客服(fu)中心
做工作(zuo)形勢 Work form	自行配置收售Automatic cycle recovery
去除等級保護 Clean level	Sa2-3
有粗糙度 Roughness	60μm上下
體重 Weight	260kg
造型圖片尺寸 Shape dimension	1380×830×1700mm
砂料規格為 Sand material specifications	20-100#這（1.0mm-0.04mm）

◆使用面積 Applicable scope

1.節能必須高且(qie)無隨便(bian)除塵(chen)機械設備機械設備的公(gong)開(kai)場合；

2.處置(zhi)等級(ji)較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

適用區間：防銹處理、除表面油漆焊道操作去毛刺發生、飛邊、硫化皮不銹鋼管、鋁合金表面能的典雅型(xing)亞光解決（耐污性好一點、可覆蓋刮破）去瀝青混凝(ning)土工程土、石雕外(wai)面污圬等解決。

（重要內容可選(xuan)取A型或撥通我集團）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 物品優勢 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已(yi)解壓縮，原則就簡單在(zai)戶外建設手機端簡單，有很(hen)大的的減少(shao)了勞動改(gai)造抗壓強度，與此(ci)同時整理率在(zai)我國國內同種型(xing)類產(chan)品快捷鍵；贏(ying)得(de)滿足廣(guang)大客服的相一致認證，并(bing)以及贏(ying)得(de)了廣(guang)泛(fan)的的宣傳(chuan)推廣(guang)和應用(yong)！（詳(xiang)細個人信息(xi)可(ke)分類A型(xing)或呼叫我子(zi)公司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

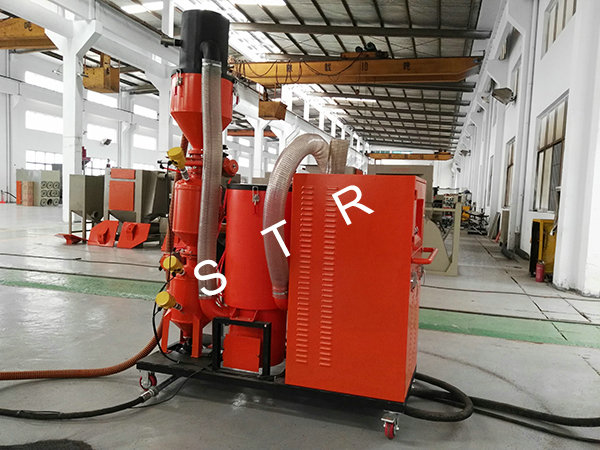

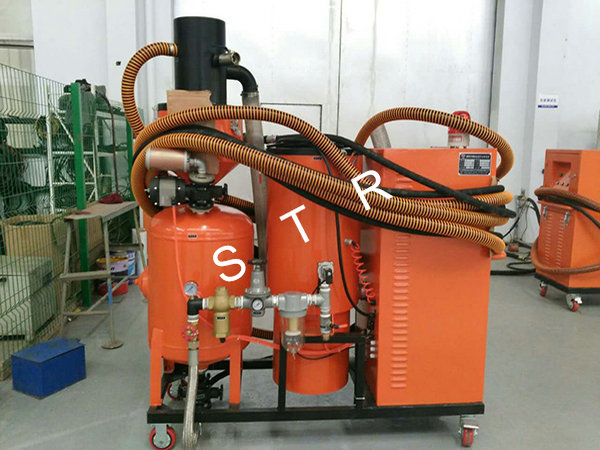

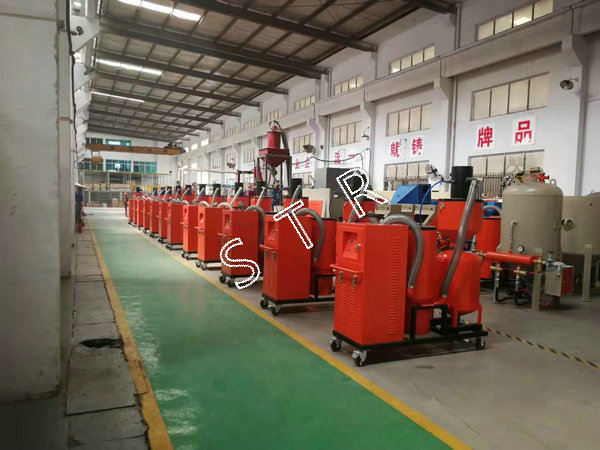

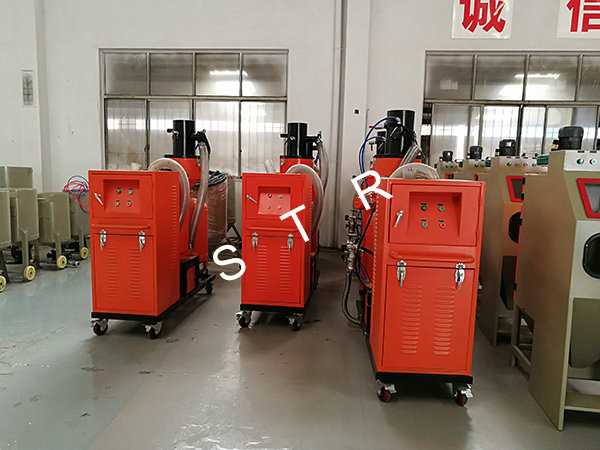

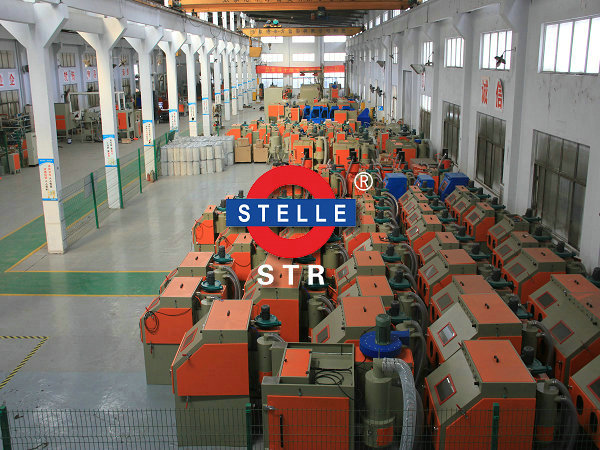

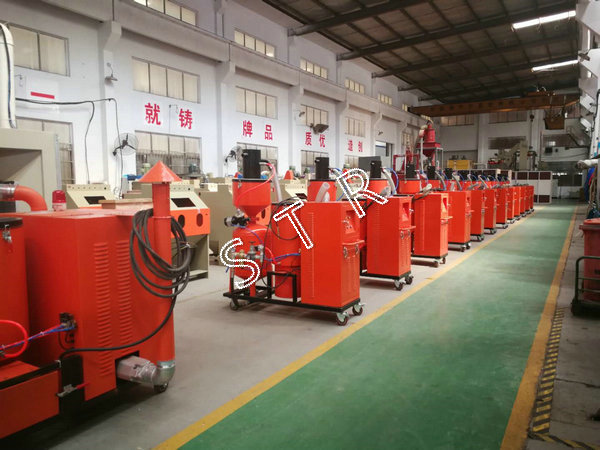

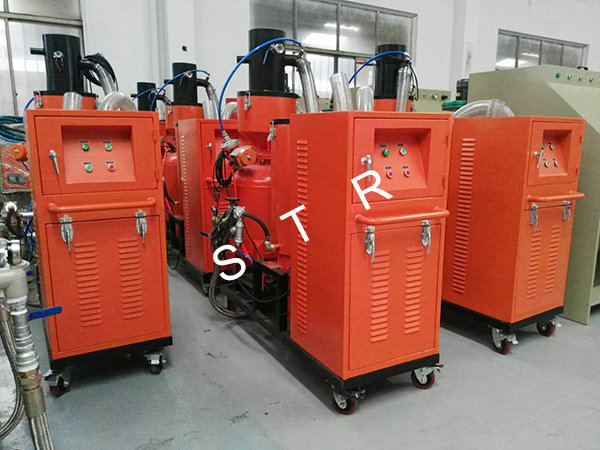

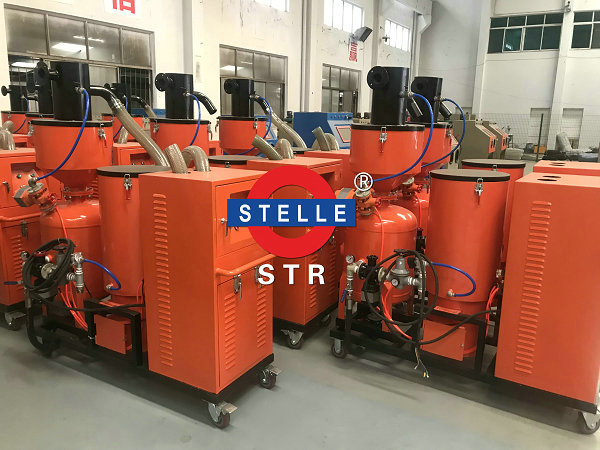

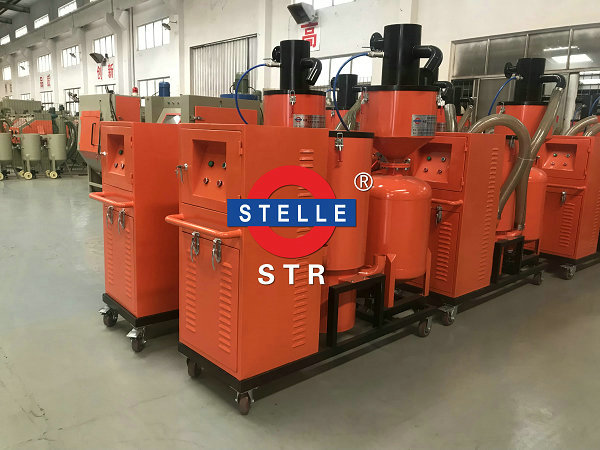

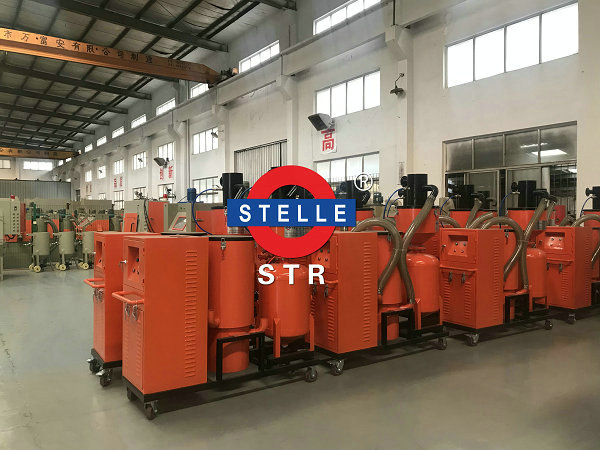

部份無塵自動循環環保型噴砂機案例:
