◆服務優點和缺點 Product features(請接著(zhu)訪問挺大量案例庫照片視頻供(gong)考(kao)生(sheng))

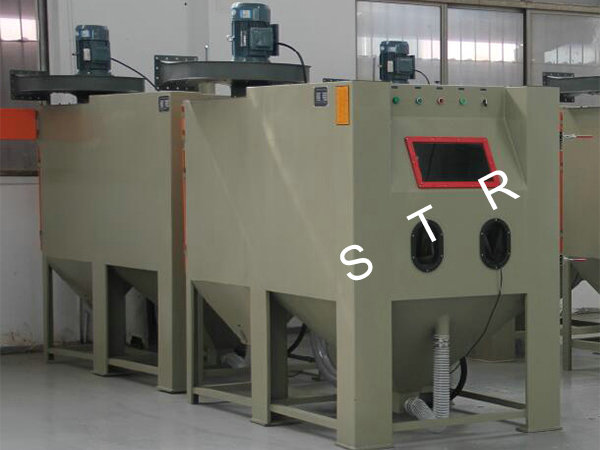

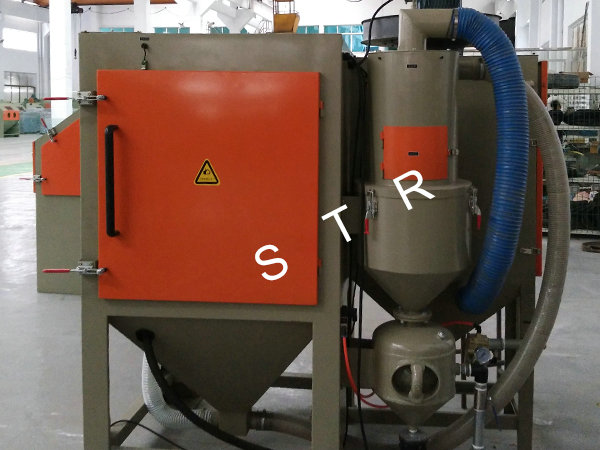

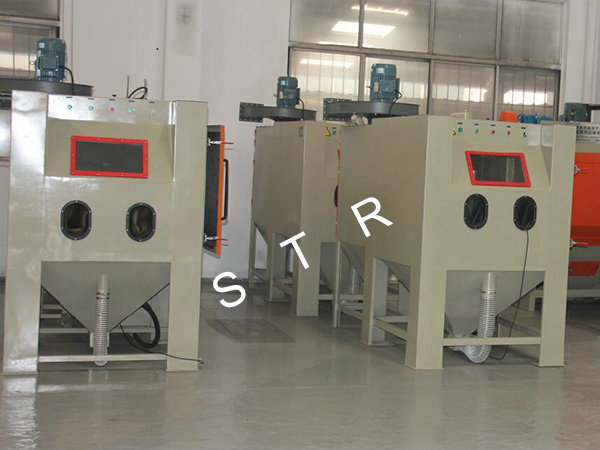

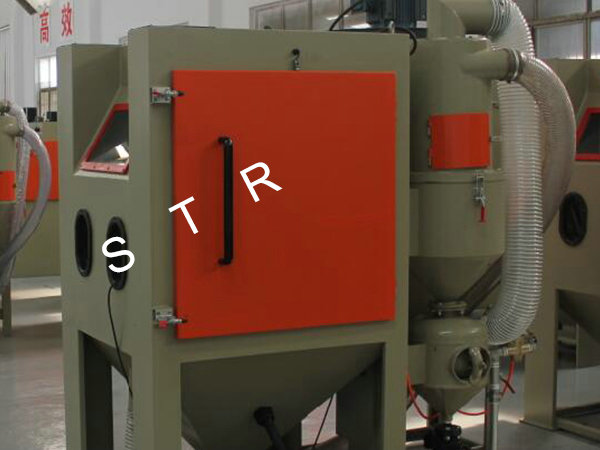

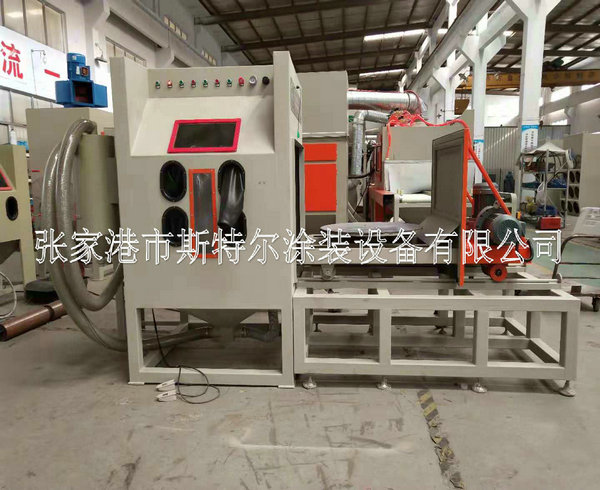

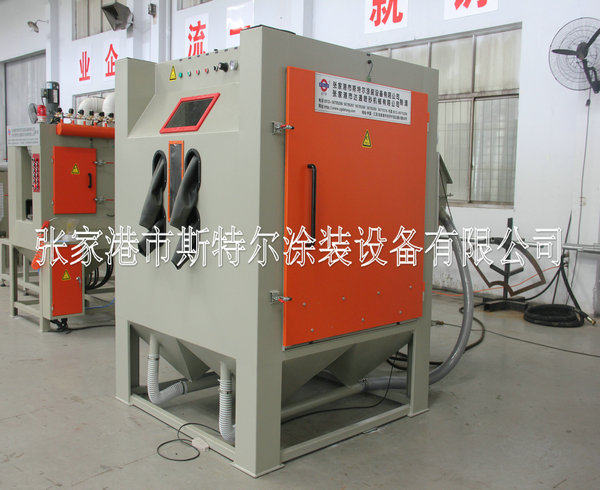

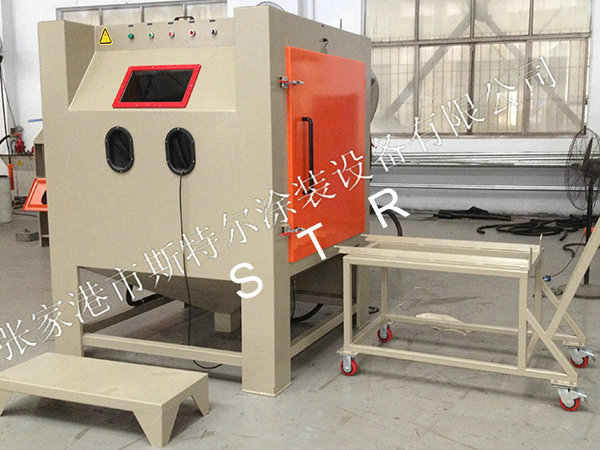

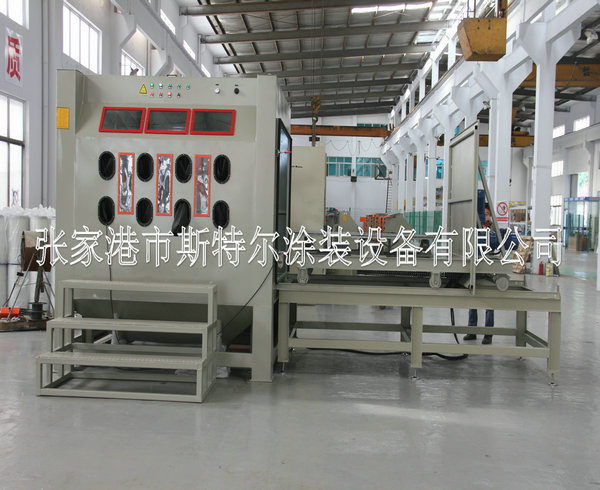

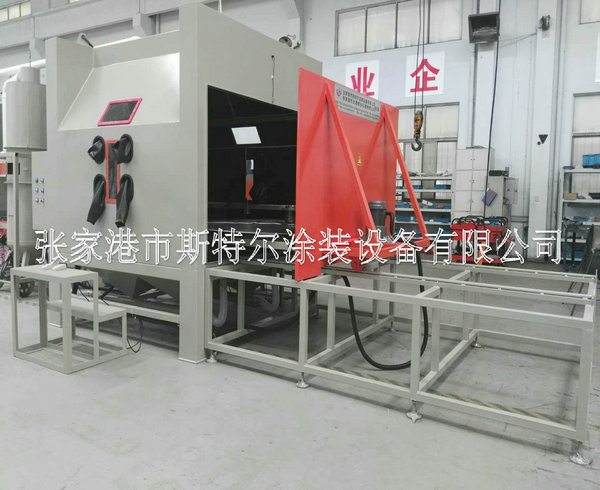

噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。
Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.
◆常用規模 Applicable scope
電(dian)子(zi)設備(bei)五金電(dian)器類,ABS塑膠(jiao),pvc板(ban)材,塑料模具。重形(xing)軸(zhou)類零件(jian)、格局件(jian)、樹脂材料等(deng)軸(zhou)類零件(jian)或施工工藝擺件(jian)噴砂。
Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting
◆重要技巧運作 Main technical parameters供考慮按照與銷售(shou)業(ye)務電話聯(lian)系
|
廣州POS機參數 Model |
STR-9070 |
STR-9080 |
STR-1010 |
STR-1212 |
|
工作中艙長(chang)寬高 Internal size(mm) |
900×700×790 |
900×800×700 |
1000×1000×670 |
1180×1180×980 |
|
整套(tao)裝置長寬高 Complete machine size(mm) |
900×700×1780 |
950×850×1720 |
1000×1000×2100 |
1200×1200×2580 |
|
安(an)裝除塵設備箱盡寸 Dedust box sizes(mm) |
600×600×1680 |
600×600×1680 |
600×600×1680 |
800×800×1780 |
|
主機電(dian)源(yuan) Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
機械燈飾(shi)照(zhao)指路明燈 Machine floodlight |
220V 20W 節電燈(deng) |
220V 20W 環保節能燈管(guan) |
220V 20W 節能環(huan)保燈 |
220V 20W 環保燈 |
|
區分器(qi)無刷電(dian)機 Separator motor |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55 |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55-3KW |
|
離(li)心過濾器(qi)原理(li)功率 Separator air volume |
8.5m3/min |
8.5m3/min |
8.5m3/min |
8.5m3/min |
|
縮短(duan)暖空氣(qi)源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
機械總重 Weight |
380kg |
380kg |
400kg |
380kg |
